LM20SITL/NOPB Texas Instruments - Yeehing Electronics

±1.5°C Analog Output Temperature Sensor

Pricing (USD)

Quantity	Unit Price
1 — 99	1.151
100 — 249	0.951
250 — 999	0.683
1,000 +	0.36

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Board Mount Temperature Sensors
RoHS	Y
Output Type	Analog
Configuration	Remote
Supply Voltage - Min	2.4 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 130 C
Shutdown	Shutdown
Mounting Style	SMD/SMT

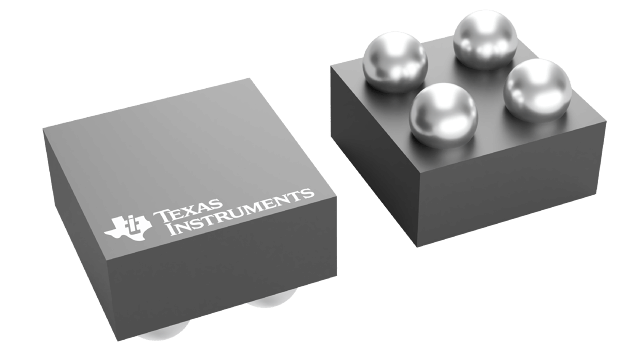

Package / Case	DSBGA-4
Product	Temperature Sensor
Packaging	Reel
Output Current	10 mA
Series	LM20
Brand	Texas Instruments
Gain	- 11.77 mV/C
Product Type	Temperature Sensors
Factory Pack Quantity	250
Subcategory	Sensors
Unit Weight	0.000042 oz

For more information, please refer to datasheet

Documents

LM20SITL/NOPB Datasheet

More Information

The LM20 is a precision analog output CMOS integrated-circuit temperature sensor that operates over −55°C to 130°C. The power supply operating range is 2.4 V to 5.5 V. The transfer function of LM20 is predominately linear, yet has a slight predictable parabolic curvature. The accuracy of the LM20 when specified to a parabolic transfer function is ±1.5°C at an ambient temperature of 30°C. The temperature error increases linearly and reaches a maximum of ±2.5°C at the temperature range extremes. The temperature range is affected by the power supply voltage. At a power supply voltage of 2.7 V to 5.5 V, the temperature range extremes are 130°C and −55°C. Decreasing the power supply voltage to 2.4 V changes the negative extreme to −30°C, while the positive extreme remains at 130°C.
