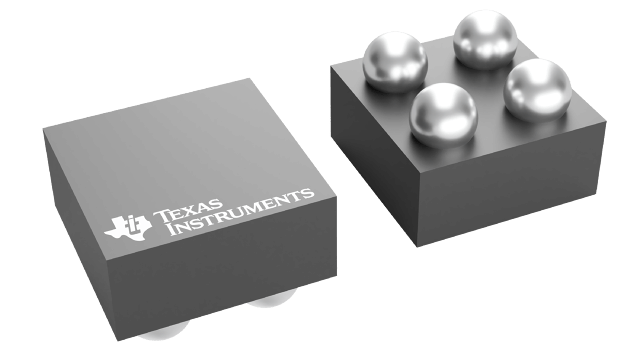

LM20SITLX/NOPB Texas Instruments - Yeehing Electronics

±1.5°C Analog Output Temperature Sensor

Pricing (USD)

Quantity	Unit Price
1 — 99	1.094
100 — 249	0.842
250 — 999	0.62
1,000 +	0.31

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Board Mount Temperature Sensors
RoHS	Y
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 130 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-4
Packaging	Reel
Series	LM20
Brand	Texas Instruments
Product Type	Temperature Sensors
Factory Pack Quantity	3000
Subcategory	Sensors
Unit Weight	0.000042 oz

For more information, please refer to datasheet

Documents

LM20SITLX/NOPB Datasheet

More Information

The LM20 is a precision analog output CMOS integrated-circuit temperature sensor that operates over −55°C to 130°C. The power supply operating range is 2.4 V to 5.5 V. The transfer function of LM20 is predominately linear, yet has a slight predictable parabolic curvature. The accuracy of the LM20 when specified to a parabolic transfer function is ±1.5°C at an ambient temperature of 30°C. The temperature error increases linearly and reaches a maximum of ±2.5°C at the temperature range extremes. The temperature range is affected by the power supply voltage. At a power supply voltage of 2.7 V to 5.5 V, the temperature range extremes are 130°C and −55°C. Decreasing the power supply voltage to 2.4 V changes the negative extreme to −30°C, while the positive extreme remains at 130°C.
