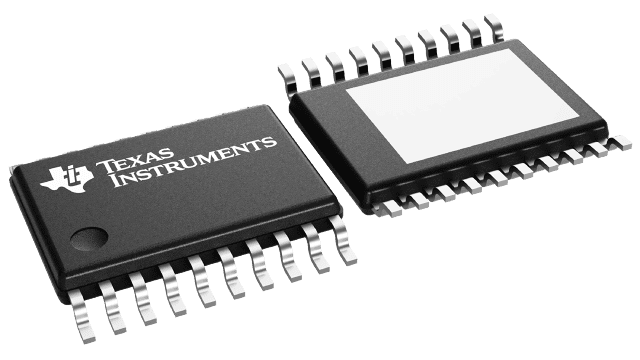

LM21212MH-1/NOPB Texas Instruments - Yeehing Electronics
2.95-5.5V, 12A, Voltage Mode Synchronous Buck Regulator with Frequency Synchronization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.189 |
| 100 — 249 | 4.23 |
| 250 — 999 | 3.325 |
| 1,000 + | 1.97 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 73 |
| Package | Pins | HTSSOP (PWP) | 20 |
For more information, please refer to datasheet
Documents
| LM21212MH-1/NOPB Datasheet |
More Information
The LM21212-1 is a monolithic synchronous point-of-load buck regulator that is capable of delivering up to 12 A of continuous output current while producing an output voltage down to 0.6 V with outstanding efficiency. The device is optimized to work over an input voltage range of 2.95 V to 5.5 V, making it suited for a wide variety of low voltage systems. The voltage mode control loop provides high noise immunity, narrow duty-cycle capability and can be compensated to be stable with any type of output capacitance, providing maximum flexibility and ease of use.
