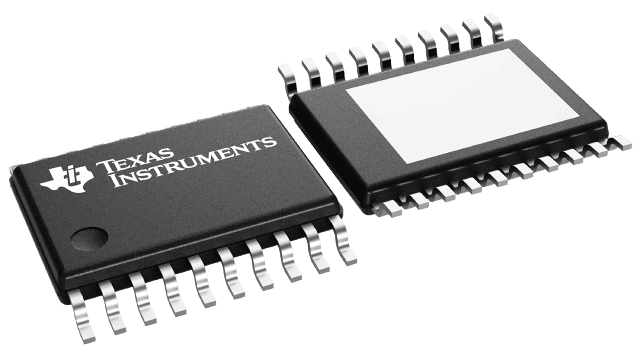

LM21212MH-2/NOPB Texas Instruments - Yeehing Electronics

2.95-5.5V, 12A, Voltage Mode Synchronous Buck Regulator with Adjustable Frequency

Pricing (USD)

Quantity	Unit Price
1 — 99	5.189
100 — 249	4.23
250 — 999	3.325
1,000 +	1.97

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTSSOP-20
Output Voltage	600 mV to 5.5 V
Output Current	12 A
Input Voltage MAX	5.5 V
Topology	Buck
Switching Frequency	1.55 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM21212-2
Packaging	Tube
Operating Temperature Range	- 40 C to + 125 C
Type	Step Down Regulator
Brand	Texas Instruments
Operating Supply Current	1.5 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	73
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002885 oz

For more information, please refer to datasheet

Documents

LM21212MH-2/NOPB Datasheet

More Information

The LM21212-2 is a monolithic synchronous buck regulator that is capable of delivering up to 12 A of continuous output current while producing an output voltage down to 0.6 V with outstanding efficiency. The device is optimized to work over an input voltage range of 2.95 V to 5.5 V, making it suitable for a wide variety of low voltage systems. The voltage mode control loop provides high noise immunity and narrow duty-cycle capability, and it can be compensated to be stable with any type of output capacitance, providing maximum flexibility and ease of use.
