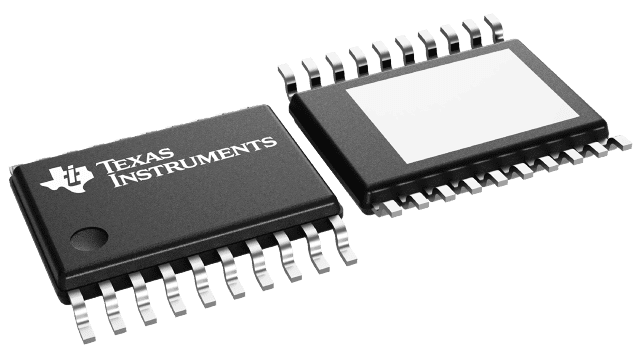

LM21212MHE-2/NOPB Texas Instruments - Yeehing Electronics

2.95-5.5V, 12A, Voltage Mode Synchronous Buck Regulator with Adjustable Frequency

Pricing (USD)

Quantity	Unit Price
1 — 99	5.189
100 — 249	4.23
250 — 999	3.325
1,000 +	1.97

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM21212MHE-2/NOPB Datasheet

More Information

The LM21212-2 is a monolithic synchronous buck regulator that is capable of delivering up to 12 A of continuous output current while producing an output voltage down to 0.6 V with outstanding efficiency. The device is optimized to work over an input voltage range of 2.95 V to 5.5 V, making it suitable for a wide variety of low voltage systems. The voltage mode control loop provides high noise immunity and narrow duty-cycle capability, and it can be compensated to be stable with any type of output capacitance, providing maximum flexibility and ease of use.
