Texas Instruments
LM21215AMHE-1/NOPB
LM21215AMHE-1/NOPB
Regular price
$2.27 USD
Regular price
Sale price
$2.27 USD
Unit price
per
Couldn't load pickup availability
LM21215AMHE-1/NOPB Texas Instruments - Yeehing Electronics
2.95-5.5V, 15A, Voltage Mode Synchronous Buck Regulator with Frequency Synchronization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.962 |
| 100 — 249 | 4.86 |
| 250 — 999 | 3.82 |
| 1,000 + | 2.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

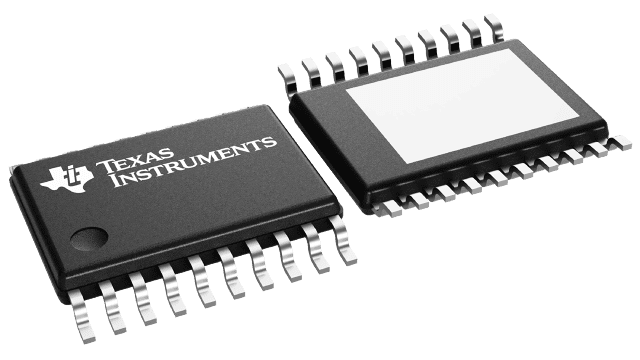

| Package / Case | HTSSOP-20 |
| Output Voltage | 600 mV to 5.5 V |
| Output Current | 15 A |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Switching Frequency | 300 kHz to 1.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM21215A |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Buck Regulator |
| Brand | Texas Instruments |
| Operating Supply Current | 1.5 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002885 oz |
For more information, please refer to datasheet
Documents
| LM21215AMHE-1/NOPB Datasheet |
More Information
The LM21215A is a synchronous buck DC-DC converter that delivers up to 15 A of output current at output voltages as low as 0.6 V. Operating over an input voltage range of 2.95 V to 5.5 V with ultra-high efficiency, the LM21215A suits a wide variety of low voltage systems. The voltage-mode control loop with high gain-bandwidth error amplifier provides high noise immunity, narrow duty cycle capability and is easily compensated for stable operation with any type of output capacitor, providing maximum flexibility and ease of use.
