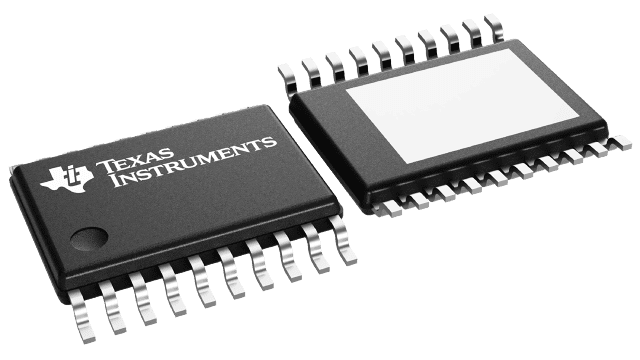

LM21215MHE/NOPB Texas Instruments - Yeehing Electronics

2.95-5.5V, 15A, Voltage Mode Synchronous Buck Regulator with Adjustable Frequency

Pricing (USD)

Quantity	Unit Price
1 — 99	5.962
100 — 249	4.86
250 — 999	3.82
1,000 +	2.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTSSOP-20
Output Voltage	0.6 V to 5.5 V
Output Current	15 A
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Buck
Input Voltage MIN	2.95 V
Switching Frequency	500 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM21215
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Type	Step Down
Brand	Texas Instruments
Development Kit	LM21215EVM/NOPB
Load Regulation	0.02 % Vout/A
Operating Supply Current	1.5 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002885 oz

For more information, please refer to datasheet

Documents

LM21215MHE/NOPB Datasheet

More Information

The LM21215 is a monolithic synchronous point-of-load buck regulator that is capable of delivering up to 15 A of continuous output current while producing an output voltage down to 0.6 V with outstanding efficiency. The device is optimized to work over an input voltage range of 2.95 V to 5.5 V, making it suitable for a wide variety of low voltage systems. The voltage mode control loop provides high noise immunity, narrow duty cycle capability and can be compensated to be stable with any type of output capacitance, providing maximum flexibility and ease of use.
