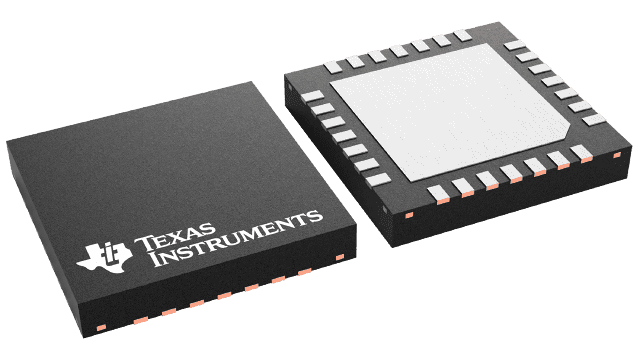

LM21305SQE/NOPB Texas Instruments - Yeehing Electronics
3-18V, 5A, Current Mode Synchronous Buck Regulator with Adjustable Frequency
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.343 |
| 100 — 249 | 4.356 |
| 250 — 999 | 3.424 |
| 1,000 + | 2.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-28 |
| Output Voltage | 598 mV to 5 V |
| Output Current | 5 A |
| Input Voltage MAX | 18 V |
| Topology | Buck |
| Switching Frequency | 300 kHz to 1.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LM21305 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 9 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| LM21305SQE/NOPB Datasheet |
More Information
The LM21305 is a full-featured, 5-A, synchronous buck dc-dc converter optimized for solution size, flexibility, and high conversion efficiency. High-power density LM21305 designs are easily achieved by virtue of monolithic integration of high-side and low-side power MOSFETs, high switching frequency, peak current-mode control, and optimized thermal design. The efficiency of the LM21305 is maximized at light loads with diode emulation mode operation and at heavy loads by optimal design of the MOSFET adaptive gate drivers to minimize switch dead-times and body-diode conduction losses.
