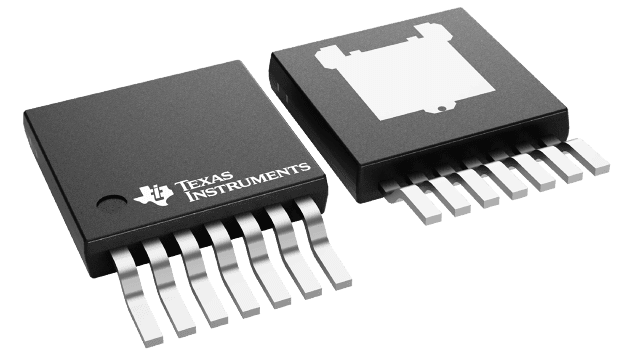

LM22679QTJE-ADJ/NOPB Texas Instruments - Yeehing Electronics
5A SIMPLE SWITCHER, Step-Down Voltage Regulator with Adjustable Soft-Start & Current Limit
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.899 |
| 100 — 249 | 4.809 |
| 250 — 999 | 3.78 |
| 1,000 + | 2.24 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM22679QTJE-ADJ/NOPB Datasheet |
More Information
The LM22679 switching regulator provides all of the functions necessary to implement an efficient high-voltage step-down (buck) regulator using a minimum of external components. This easy-to-use regulator incorporates a 42-V N-channel MOSFET switch that can provide up to 5 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5-V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. An adjustable soft-start feature is provided through the selection of a single external capacitor. In addition, the switch-current limit can be programmed with a single external resistor, allowing solution optimization. The LM22679 device also has built-in thermal shutdown and current limiting to protect against accidental overloads.
