Texas Instruments

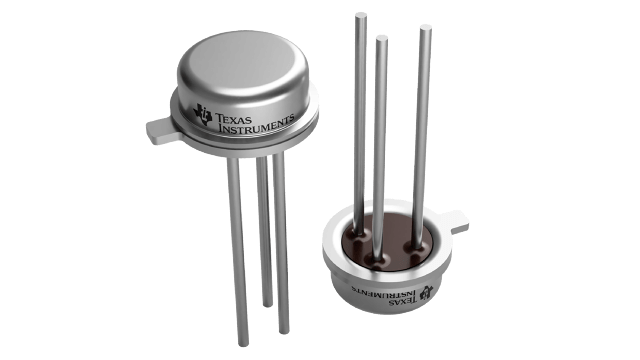

LM236H-2.5/NOPB
LM236H-2.5/NOPB
Regular price
$3.98 USD
Regular price
Sale price
$3.98 USD
Unit price
per
Couldn't load pickup availability
LM236H-2.5/NOPB Texas Instruments - Yeehing Electronics
Voltage Reference Diode
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.459 |
| 100 — 249 | 8.526 |
| 250 — 999 | 6.701 |
| 1,000 + | 3.98 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Voltage References |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-46 |
| Reference Type | Shunt Precision References |
| Output Voltage | 2.49 V |
| Initial Accuracy | 1 % |
| Temperature Coefficient | 20 PPM / C |
| Shunt Current - Max | 10 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM136-2.5-N |
| Packaging | Bulk |
| Accuracy | 6 mV |
| Description/Function | VOLTAGE REFERENCE DIODE |
| Height | 2.67 mm |
| Length | 5.44 mm |
| Operating Temperature Range | - 55 C to + 125 C |
| Product | Voltage References |
| Width | 5.44 mm |
| Brand | Texas Instruments |
| Shunt Current - Min | 400 uA |
| Topology | Shunt References |
| Load Regulation | 6 mV |
| Product Type | Voltage References |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM236H-2.5/NOPB Datasheet |
More Information
The LM136-2.5-N/LM236-2.5-N and LM336-2.5-N integrated circuits are precision 2.5V shunt regulator diodes. These monolithic IC voltage references operate as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the LM136-2.5-N allows the reference voltage and temperature coefficient to be trimmed easily.
