Texas Instruments

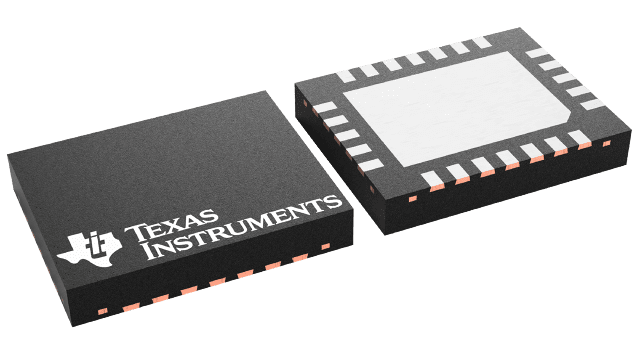

LM25056APSQE/NOPB
LM25056APSQE/NOPB
Regular price
$1.68 USD
Regular price
Sale price
$1.68 USD
Unit price
per
Couldn't load pickup availability
LM25056APSQE/NOPB Texas Instruments - Yeehing Electronics
17-V PMBus Current/Voltage/Power/Temperature Monitor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.836 |
| 100 — 249 | 4.237 |
| 250 — 999 | 2.971 |
| 1,000 + | 1.68 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Hot Swap Voltage Controllers |
| RoHS | Y |
| Product | Power Distribution |
| Current Limit | 50 mA |
| Supply Voltage - Max | 17 V |
| Supply Voltage - Min | 3 V |
| Number of Channels | 1 Channel |
| Operating Supply Current | 1.7 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-24 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM25056A |
| Brand | Texas Instruments |
| Input / Supply Voltage - Max | 17 V |
| Input / Supply Voltage - Min | 3 V |
| Overvoltage Threshold | No Overvoltage Threshold |
| Undervoltage Threshold | No Undervoltage Threshold |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 12 V |
| Product Type | Hot Swap Voltage Controllers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001820 oz |
For more information, please refer to datasheet
Documents
| LM25056APSQE/NOPB Datasheet |
More Information
The LM25056A combines high performance analog and digital technology with a PMBus compliant SMBus/I2C interface to accurately measure the operating conditions of electrical systems including computing and storage blades connected to a backplane power bus. The LM25056A continuously supplies real-time power, voltage, current, and temperature data to the system management host via the SMBus interface.
