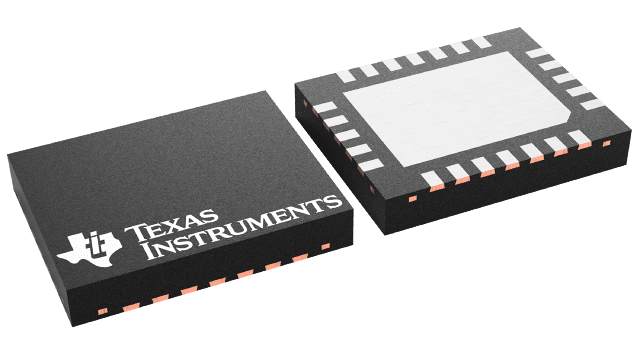

LM25056PSQ/NOPB Texas Instruments - Yeehing Electronics
3 to 17V, 12-bit, pmbus output current/voltage/power/temperature monitor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.636 |
| 100 — 249 | 6.691 |
| 250 — 999 | 4.691 |
| 1,000 + | 2.65 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Current & Power Monitors & Regulators |
| RoHS | Y |
| Product | Power Monitors |
| Supply Voltage - Max | 17 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | WQFN-24 |
| Packaging | Reel |
| Features | Digital Temp Monitor, PMBus, Supports Telemetry Data Storage |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM25056 |
| Brand | Texas Instruments |
| Input Voltage Range | 3 V to 17 V |
| Development Kit | LM25056EVAL/NOPB |
| Moisture Sensitive | Yes |
| Product Type | Current & Power Monitors & Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM25056PSQ/NOPB Datasheet |
More Information
The LM25056 combines high performance analog and digital technology with a PMBus compliant SMBus/I2C interface to accurately measure the operating conditions of electrical systems including computing and storage blades connected to a backplane power bus. The LM25056 continuously supplies real-time power, voltage, current, and temperature data to the system management host via the SMBus interface.
