Texas Instruments
LM25066APSQ/NOPB
LM25066APSQ/NOPB
Regular price
$1.89 USD
Regular price
Sale price
$1.89 USD
Unit price
per
Couldn't load pickup availability

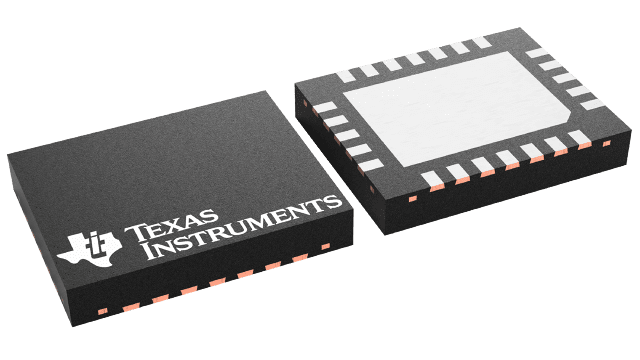

LM25066APSQ/NOPB Texas Instruments - Yeehing Electronics
2.9-V to 17-V hot swap controller with I2C and PMBus with increased monitoring accuracy
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.337 |
| 100 — 249 | 3.536 |
| 250 — 999 | 2.779 |
| 1,000 + | 1.89 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Hot Swap Voltage Controllers |
| RoHS | Y |
| Product | Controllers & Switches |
| Current Limit | 45 mA |
| Supply Voltage - Max | 17 V |
| Supply Voltage - Min | 2.9 V |
| Operating Supply Current | 5.8 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-24 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM25066A |
| Brand | Texas Instruments |
| Overvoltage Threshold | Overvoltage Threshold |
| Undervoltage Threshold | Undervoltage Threshold |
| Moisture Sensitive | Yes |
| Product Type | Hot Swap Voltage Controllers |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM25066APSQ/NOPB Datasheet |
More Information
The LM25066A combines a high-performance hot-swap controller with a PMBus™ compliant SMBus/I2C interface to accurately measure, protect and control the electrical operating conditions of computing and storage blades connected to a backplane power bus. The LM25066A continuously supplies real-time power, voltage, current, temperature and fault data to the system management host via the SMBus interface.
