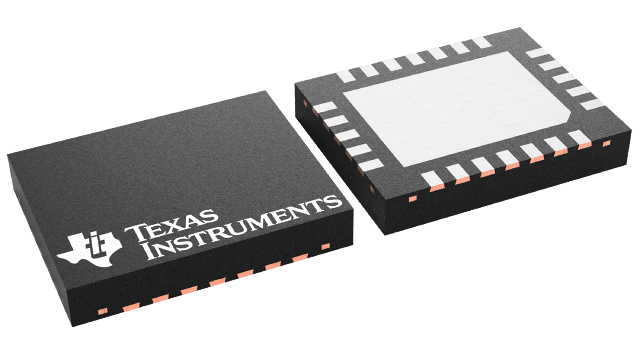

LM25066APSQX/NOPB Texas Instruments - Yeehing Electronics

2.9-V to 17-V hot swap controller with I2C and PMBus with increased monitoring accuracy

Pricing (USD)

Quantity	Unit Price
1 — 99	3.614
100 — 249	2.946
250 — 999	2.316
1,000 +	1.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Hot Swap Voltage Controllers
RoHS	Y
Product	Controllers & Switches
Current Limit	45 mA
Supply Voltage - Max	17 V
Supply Voltage - Min	2.9 V
Operating Supply Current	5.8 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	WQFN-24
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Series	LM25066A
Brand	Texas Instruments
Overvoltage Threshold	Overvoltage Threshold
Undervoltage Threshold	Undervoltage Threshold
Moisture Sensitive	Yes
Product Type	Hot Swap Voltage Controllers
Factory Pack Quantity	4500
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM25066APSQX/NOPB Datasheet

More Information

The LM25066A combines a high-performance hot-swap controller with a PMBus™ compliant SMBus/I2C interface to accurately measure, protect and control the electrical operating conditions of computing and storage blades connected to a backplane power bus. The LM25066A continuously supplies real-time power, voltage, current, temperature and fault data to the system management host via the SMBus interface.
