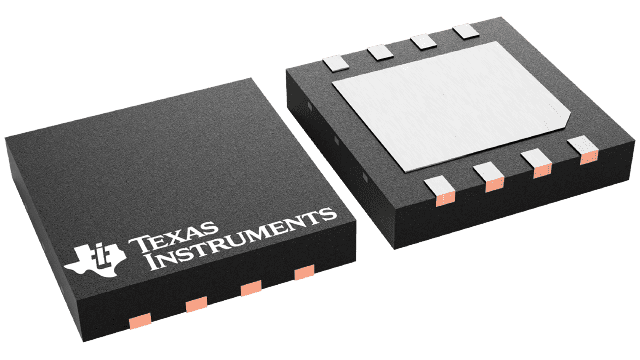

LM25101ASDX-1/NOPB


YeeHing #: Y012-LM25101ASDX-1/NOPB
Inventory: 7200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM25101ASDX-1/NOPB Texas Instruments - Yeehing Electronics

3-A, 2-A or 1-A half bridge gate driver with 8-V UVLO and TTL inputs

Pricing (USD)

Quantity Unit Price
1 — 99 2.666
100 — 249 2.336
250 — 999 1.638
1,000 + 0.92

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Product Half-Bridge Drivers
Type Half Bridge
Mounting Style SMD/SMT
Package / Case WSON-8
Number of Drivers 1 Driver
Number of Outputs 1 Output
Output Current 3 A
Configuration Dual
Rise Time 8 ns
Fall Time 8 ns
Supply Voltage - Min 9 V
Supply Voltage - Max 18 V
Operating Supply Current 250 uA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LM25101
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Output Voltage 0.12 V
Technology Si
Brand Texas Instruments
Operating Supply Voltage 9 V to 18 V
Product Type Gate Drivers
Factory Pack Quantity 4500
Subcategory PMIC - Power Management ICs
Unit Weight 0.000384 oz

For more information, please refer to datasheet

Documents

LM25101ASDX-1/NOPB Datasheet

More Information

The LM25101 high-voltage gate driver is designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous buck or a half-bridge configuration. The A version provides a full 3-A of gate drive while the B and C versions provide 2-A and 1-A, respectively. The outputs are independently controlled with TTL input thresholds. An integrated high voltage diode is provided to charge the high-side gate drive bootstrap capacitor. A robust level shifter operates at high speed while consuming low power and providing clean level transitions from the control logic to the high-side gate driver. Undervoltage lockout is provided on both the low-side and the high-side power rails.
