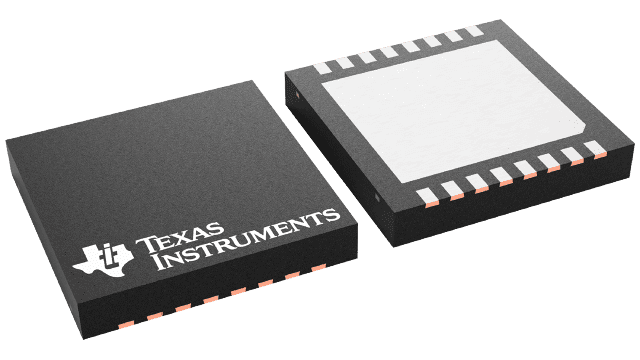

LM25115SDX/NOPB Texas Instruments - Yeehing Electronics

42V, Secondary Side Post Regulator/Synchronous Buck Controller

Pricing (USD)

Quantity	Unit Price
1 — 99	1.667
100 — 249	1.46
250 — 999	1.024
1,000 +	0.58

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Synchronous Secondary Side Post Regulator
Number of Outputs	1 Output
Switching Frequency	50 kHz to 1000 kHz
Input Voltage	4.5 V to 42 V
Output Voltage	0.75 V to 13.5 V
Output Current	2.5 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Package / Case	LLP-16
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Series	LM25115
Type	Synchronous Buck Controller
Brand	Texas Instruments
Product Type	Switching Controllers
Factory Pack Quantity	4500
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM25115SDX/NOPB Datasheet

More Information

The LM25115 controller contains all of the features necessary to implement multiple output power converters utilizing the Secondary Side Post Regulation (SSPR) technique. The SSPR technique develops a highly efficient and well regulated auxiliary output from the secondary side switching waveform of an isolated power converter. Regulation of the auxiliary output voltage is achieved by leading edge pulse width modulation (PWM) of the main channel duty cycle. Leading edge modulation is compatible with either current mode or voltage mode control of the main output. The LM25115 drives external high side and low side NMOS power switches configured as a synchronous buck regulator. A current sense amplifier provides overload protection and operates over a wide common mode input range. Additional features include a low dropout (LDO) bias regulator, error amplifier, precision reference, adaptive dead time control of the gate signals and thermal shutdown.
