Texas Instruments
LM2512ASM/NOPB
LM2512ASM/NOPB
Regular price
$1.55 USD
Regular price
Sale price
$1.55 USD
Unit price
per
Couldn't load pickup availability
LM2512ASM/NOPB Texas Instruments - Yeehing Electronics
Mobile pixel link (MPL-1) 24bit RGB display interf serializer w/ optional dithering & look up table
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.081 |
| 100 — 249 | 3.327 |
| 250 — 999 | 2.615 |
| 1,000 + | 1.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Serializers & Deserializers - Serdes |
| RoHS | Y |
| Type | Serializer |
| Data Rate | 468 Mb/s |
| Input Type | LVCMOS |
| Output Type | MPL (Mobile Pixel Link) |
| Number of Inputs | 28 Input |
| Number of Outputs | 3 Output |
| Operating Supply Voltage | 1.6 V to 3 V |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

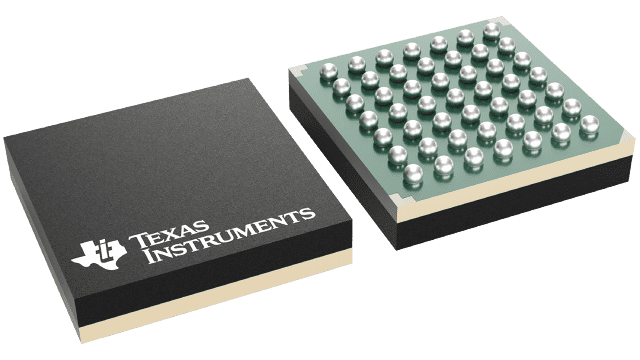

| Package / Case | nFBGA-49 |
| Packaging | Reel |
| Series | LM2512A |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 9 mA |
| Product Type | Serializers & Deserializers - Serdes |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| LM2512ASM/NOPB Datasheet |
More Information
The LM2512A is a MPL Serializer (SER) that performs a 24-bit to 18-bit Dither operation and serialization of the video signals to Mobile Pixel link (MPL) levels on only 3 or 4 active signals. An optional Look Up Table (Three X 256 X 8 bit RAM) is also provided for independent color correction. 18-bit Bufferless or partial buffer displays from QVGA (320 x 240) up to VGA (640 x 480) pixels can utilize a 24-bit video source.
