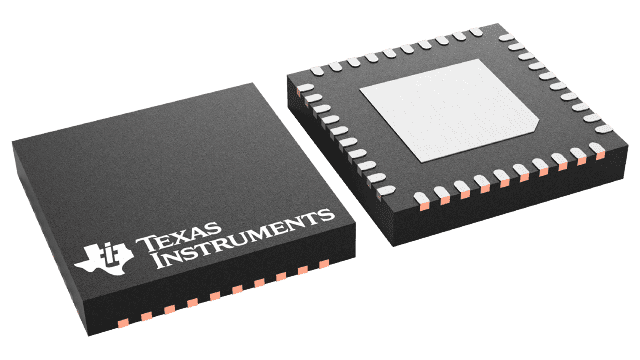

LM25143RHAR Texas Instruments - Yeehing Electronics
3.5-V to 42-V, dual-output, stackable, synchronous buck DC/DC controller with ultra-low IQ
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.674 |
| 100 — 249 | 2.343 |
| 250 — 999 | 1.643 |
| 1,000 + | 0.76 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM25143RHAR Datasheet |
More Information
The LM25143 is a 42-V DC/DC synchronous buck controller for high-current single or dual outputs. Deriving from a family of wide-VIN range controllers, the device uses an interleaved, stackable, peak current-mode control architecture for easy loop compensation, fast transient response, excellent load and line regulation, and accurate current sharing with paralleled phases for higher output current. A high-side switch minimum on time of 65 ns provides large step-down ratios, enabling the direct conversion from 12-V or 24-V inputs to low-voltage rails for reduced system complexity and cost. The LM25143 continues to operate during input voltage dips as low as 3.5 V, at nearly 100% duty cycle if needed.
