Texas Instruments

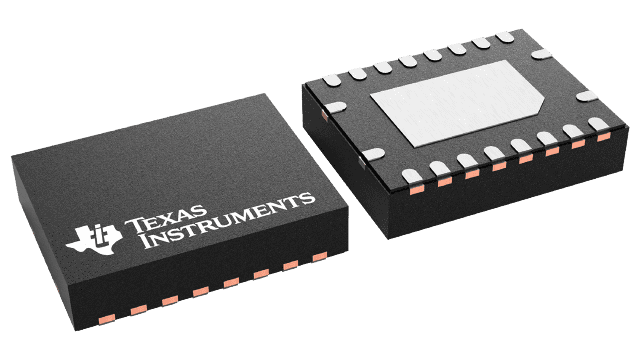

LM25145RGYT
LM25145RGYT
Couldn't load pickup availability
LM25145RGYT Texas Instruments - Yeehing Electronics
6V to 42V Synchronous Buck DC-DC Controller With Wide Duty Cycle Range
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.854 |
| 100 — 249 | 1.625 |
| 250 — 999 | 1.139 |
| 1,000 + | 0.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 1 Output |
| Switching Frequency | 100 kHz to 1 MHz |
| Duty Cycle - Max | 99 % |
| Input Voltage | 6 V to 42 V |
| Output Voltage | 0.8 V to 40 V |
| Output Current | 30 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-20 |
| Packaging | Reel |
| Description/Function | Synchronous buck DC-DC controller |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Open Drain |
| Product | DC-DC Controllers |
| Series | LM25145 |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | LM5145EVM-HD-20A |
| Fall Time | 4 ns |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.8 mA |
| Operating Supply Voltage | 6 V to 42 V |
| Product Type | Switching Controllers |
| Rise Time | 7 ns |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM25145RGYT Datasheet |
More Information
The LM25145 42-V synchronous buck controller is designed to regulate from a high input voltage source or from an input rail subject to high voltage transients, minimizing the need for external surge suppression components. A high-side switch minimum on-time of 40 ns facilitates large step-down ratios, enabling the direct step-down conversion from a 24 V nominal input to low-voltage rails for reduced system complexity and solution cost. The LM25145 continues to operate during input voltage dips as low as 6 V, at nearly 100% duty cycle if needed, making it well suited for high-performance industrial control, robotic, datacom, and RF power amplifier applications.
