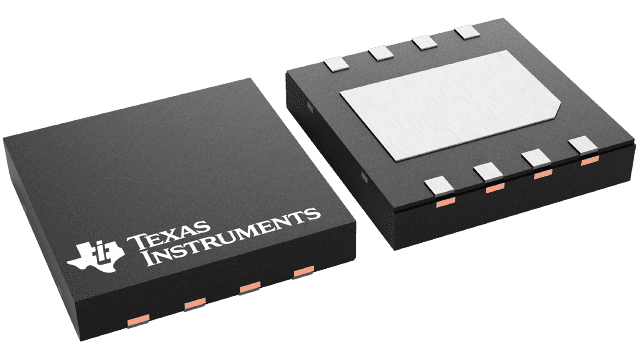

LM25183QNGURQ1 Texas Instruments - Yeehing Electronics
Automotive 42-VIN no-opto flyback converter with 65-V, 2.5-Axa0integratedxa0MOSFET
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.169 |
| 100 — 249 | 3.653 |
| 250 — 999 | 2.561 |
| 1,000 + | 1.44 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM25183QNGURQ1 Datasheet |
More Information
The LM25183-Q1 is a primary-side regulated (PSR) flyback converter with high efficiency over a wide input voltage range of 4.5 V to 42 V. The isolated output voltage is sampled from the primary-side flyback voltage. The high level of integration results in a simple, reliable, and high-density design with only one component crossing the isolation barrier. Boundary conduction mode (BCM) switching enables a compact magnetic solution and better than ±1.5% load and line regulation performance. An integrated 65-V power MOSFET provides output power up to 10 W with enhanced headroom for line transients.
