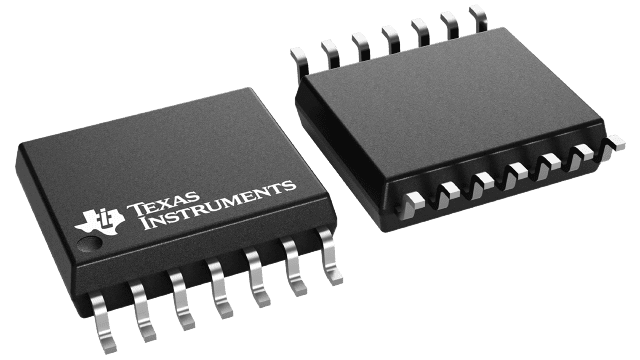

LM2574MX-5.0/NOPB


YeeHing #: Y012-LM2574MX-5.0/NOPB
Inventory: 58800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM2574MX-5.0/NOPB Texas Instruments - Yeehing Electronics

8V to 40V, 500mA SIMPLE SWITCHER® buck converter with 4 external components

Pricing (USD)

Quantity Unit Price
1 — 99 2.034
100 — 249 1.782
250 — 999 1.25
1,000 + 4.46

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case SOIC-Wide-14
Output Voltage 5 V
Output Current 500 mA
Number of Outputs 1 Output
Input Voltage MAX 40 V
Topology Buck
Input Voltage MIN 4 V
Switching Frequency 58 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LM2574
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Type Inverting, Step Down
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Current 5 mA
Product Type Switching Voltage Regulators
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs
Tradename SIMPLE SWITCHER
Unit Weight 0.013140 oz

For more information, please refer to datasheet

Documents

LM2574MX-5.0/NOPB Datasheet

More Information

The LM2574xx series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 0.5-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, 15 V, and an adjustable output version.
