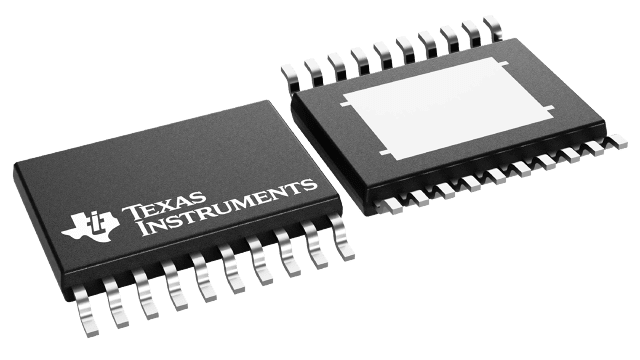

LM26420YMHX/NOPB Texas Instruments - Yeehing Electronics

Dual 2 A, high-efficiency synchronous DC/DC converter

Pricing (USD)

Quantity	Unit Price
1 — 99	2.694
100 — 249	2.196
250 — 999	1.726
1,000 +	1.02

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM26420YMHX/NOPB Datasheet

More Information

The LM26420 regulator is a monolithic, high-efficiency dual PWM step-down DC/DC converter. This device has the ability to drive two 2-A loads with an internal 75-mΩ PMOS top switch and an internal 50-mΩ NMOS bottom switch using state-of-the-art BICMOS technology results in the best power density available. The world-class control circuitry allow on times as low as 30 ns, thus supporting exceptionally high-frequency conversion over the entire 3-V to 5.5-V input operating range down to the minimum output voltage of 0.8 V.
