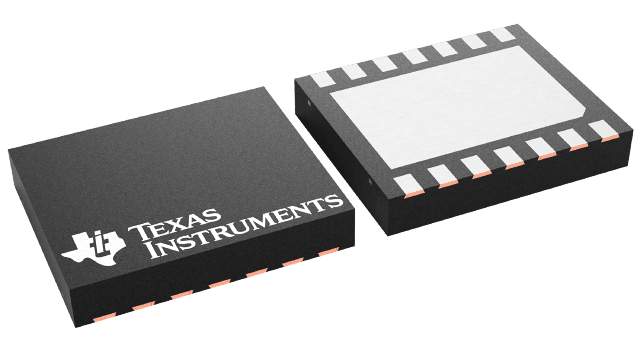

LM2670SDX-ADJ/NOPB


YeeHing #: Y012-LM2670SDX-ADJ/NOPB
Inventory: 3400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM2670SDX-ADJ/NOPB Texas Instruments - Yeehing Electronics

SIMPLE SWITCHER High Efficiency 3A Step-Down Voltage Regulator with Sync

Pricing (USD)

Quantity Unit Price
1 — 99 3.744
100 — 249 3.053
250 — 999 2.399
1,000 + 1.63

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case VSON-14
Output Voltage 1.2 V to 37 V
Output Current 3 A
Number of Outputs 1 Output
Input Voltage MAX 40 V
Topology Buck
Input Voltage MIN 8 V
Switching Frequency 260 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LM2670
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Type Step Down
Brand Texas Instruments
Operating Supply Current 4.2 mA
Product Type Switching Voltage Regulators
Factory Pack Quantity 2500
Subcategory PMIC - Power Management ICs
Tradename SIMPLE SWITCHER

For more information, please refer to datasheet

Documents

LM2670SDX-ADJ/NOPB Datasheet

More Information

The LM2670 series of regulators are monolithic integrated circuits which provide all of the active functions for a step-down (buck) switching regulator capable of driving up to 3-A loads with excellent line and load regulation characteristics. High efficiency (>90%) is obtained through the use of a low ON-resistance DMOS power switch. The series consists of fixed output voltages of 3.3-V, 5-V, and 12-V output version.
