LM2671LD-ADJ/NOPB Texas Instruments - Yeehing Electronics
8V to 40V, 500mA SIMPLE SWITCHER® buck converter with 5 external components
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.889 |
| 100 — 249 | 2.531 |
| 250 — 999 | 1.775 |
| 1,000 + | 1.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

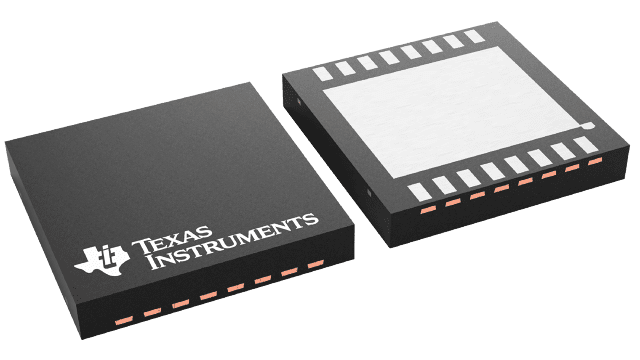

| Package / Case | WSON-16 |
| Output Voltage | 1.21 V to 37 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 40 V |
| Topology | Buck |
| Input Voltage MIN | 8 V |
| Switching Frequency | 260 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM2671 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Step Down |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.5 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SIMPLE SWITCHER |
For more information, please refer to datasheet
Documents
| LM2671LD-ADJ/NOPB Datasheet |
More Information
The LM2671 series of regulators are monolithic integrated circuits built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 500-mA load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
