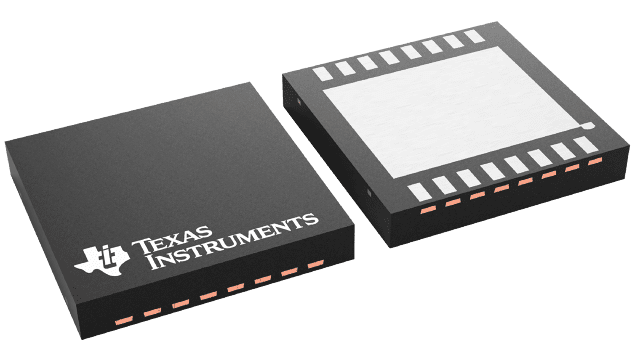

LM2675LD-ADJ/NOPB Texas Instruments - Yeehing Electronics
SIMPLE SWITCHER® 6.5V to 40V, 1A Low Component Count Step-Down Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.555 |
| 100 — 249 | 3.115 |
| 250 — 999 | 2.184 |
| 1,000 + | 1.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-16 |
| Output Voltage | 1.21 V to 37 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 40 V |
| Topology | Buck |
| Input Voltage MIN | 8 V |
| Switching Frequency | 260 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM2675 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Step Down |
| Brand | Texas Instruments |
| Development Kit | LM2675-5.0EVAL |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.5 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.002127 oz |
For more information, please refer to datasheet
Documents
| LM2675LD-ADJ/NOPB Datasheet |
More Information
The LM2675 series of regulators are monolithic integrated DC-DC converter circuits built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
