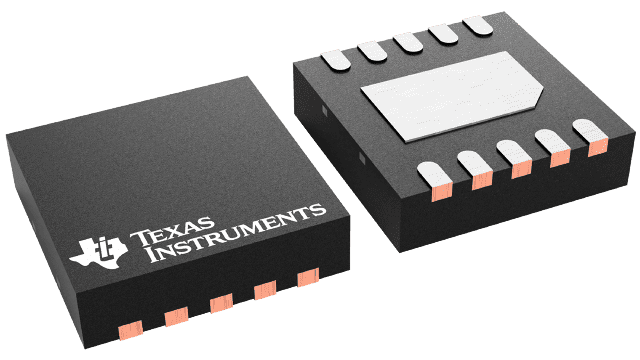

LM2694SD/NOPB Texas Instruments - Yeehing Electronics
30V, 600 mA Step Down Switching Regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.955 |
100 — 249 | 1.713 |
250 — 999 | 1.201 |
1,000 + | 0.68 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-10 |
Output Voltage | 2.5 V to 24 V |
Output Current | 600 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 30 V |
Topology | Buck |
Input Voltage MIN | 8 V |
Switching Frequency | 1000 kHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | LM2694 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Type | Step Down |
Brand | Texas Instruments |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 1000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000621 oz |
For more information, please refer to datasheet
Documents
LM2694SD/NOPB Datasheet |
More Information
The LM2694 Step Down Switching Regulator features all of the functions needed to implement a low cost, efficient, buck bias regulator capable of supplying 0.6A to the load. This buck regulator contains an N-Channel Buck Switch, and is available in the 3 x 3 thermally enhanced WSON-10 package and a TSSOP-14 package. The feedback regulation scheme requires no loop compensation, results in fast load transient response, and simplifies circuit implementation. The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The valley current limit results in a smooth transition from constant voltage to constant current mode when current limit is detected, reducing the frequency and output voltage, without the use of foldback. Additional features include: VCC under-voltage lockout, thermal shutdown, gate drive under-voltage lockout, and maximum duty cycle limiter.
