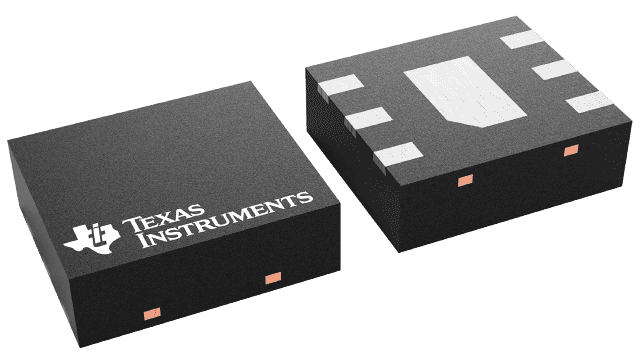

LM26LVQISDX-135/NOPB Texas Instruments - Yeehing Electronics
Automotive grade, ±3°C 1.6V-5.5V capable, factory preset trip point temperature switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.181 |
| 100 — 249 | 0.908 |
| 250 — 999 | 0.669 |
| 1,000 + | 0.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Temperature Sensors |
| RoHS | Y |
| Output Type | Digital |
| Accuracy | +/- 2.2 C |
| Supply Voltage - Min | 1.6 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Shutdown | No Shutdown |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-6 |
| Product | Temperature Sensor and Switch |
| Packaging | Reel |
| Series | LM26LV-Q1 |
| Brand | Texas Instruments |
| Gain | - 5.1 mV / C to - 12.8 mV / C |
| Operating Supply Current | 8 uA |
| Product Type | Temperature Sensors |
| Factory Pack Quantity | 4500 |
| Subcategory | Sensors |
| Unit Weight | 0.000589 oz |
For more information, please refer to datasheet
Documents
| LM26LVQISDX-135/NOPB Datasheet |
More Information
The LM26LV and LM26LV-Q1 are low-voltage, precision, dual-output, low-power temperature switches and temperature sensors. The temperature trip point (TTRIP) can be preset at the factory to any temperature in the range of 0°C to 150°C in 1°C increments. Built-in temperature hysteresis (THYST) keeps the output stable in an environment of temperature instability.
