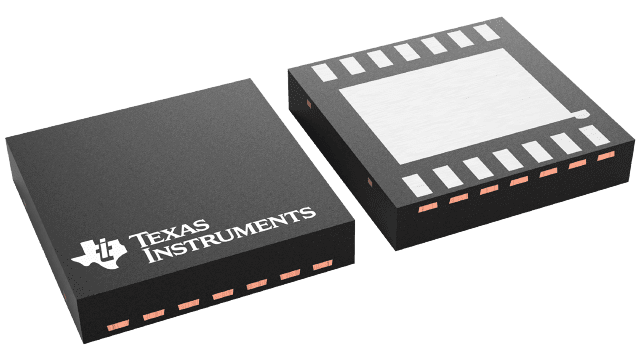

LM2700LD-ADJ/NOPB Texas Instruments - Yeehing Electronics

600kHz/1.25MHz, 2.5A, step-up PWM DC/DC converter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.333
100 — 249	2.921
250 — 999	2.048
1,000 +	1.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-14
Output Voltage	1.26 V to 17.5 V
Output Current	3.6 A
Number of Outputs	1 Output
Input Voltage MAX	12 V
Topology	Boost
Input Voltage MIN	2.2 V
Switching Frequency	600 kHz, 1250 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM2700
Packaging	Reel
Input Voltage	12 V
Operating Temperature Range	- 40 C to + 125 C
Type	Step Up
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Operating Supply Current	500 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.2 V
Unit Weight	0.001245 oz

For more information, please refer to datasheet

Documents

LM2700LD-ADJ/NOPB Datasheet

More Information

The LM2700 is a step-up DC/DC converter with a 3.6A, 80mΩ internal switch and pin selectable operating frequency. With the ability to produce 500mA at 8V from a single Lithium Ion battery, the LM2700 is an ideal part for biasing LCD displays. The LM2700 can be operated at switching frequencies of 600kHz and 1.25MHz allowing for easy filtering and low noise. An external compensation pin gives the user flexibility in setting frequency compensation, which makes possible the use of small, low ESR ceramic capacitors at the output. The LM2700 features continuous switching at light loads and operates with a switching quiescent current of 2.0mA at 600kHz and 3.0mA at 1.25MHz. The LM2700 is available in a low profile 14-lead TSSOP package or a 14-lead WSON package.
