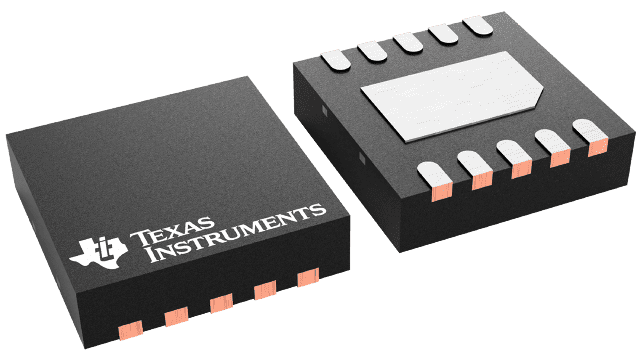

LM27342SDX/NOPB Texas Instruments - Yeehing Electronics
2A - Wide Input Range Buck Regulator with Frequency Synchronization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.347 |
| 100 — 249 | 2.057 |
| 250 — 999 | 1.442 |
| 1,000 + | 0.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Output Voltage | 1 V to 18 V |
| Output Current | 2 A |
| Number of Outputs | 1 Output |
| Topology | Buck |
| Switching Frequency | 2000 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM27342 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | LM27342MYEVAL |
| Operating Supply Current | 2.4 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM27342SDX/NOPB Datasheet |
More Information
The LM2734x and LM2734x-Q1 regulators are monolithic, high-frequency, PWM step-down DC-DC converters in 10-pin WSON and 10-pin MSOP-PowerPAD packages. They contain all the active functions to provide local DC-DC conversion with fast transient response and accurate regulation in the smallest possible PCB area.
