LM2734ZSD/NOPB Texas Instruments - Yeehing Electronics
3 to 20 V input, 1 A, high frequency step-down converter with light load efficiency
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.64 |
| 100 — 249 | 2.313 |
| 250 — 999 | 1.622 |
| 1,000 + | 1.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

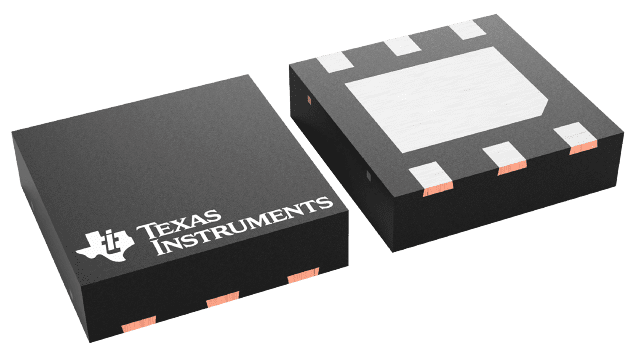

| Package / Case | WSON-6 |
| Output Voltage | 0.8 V to 18 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 20 V |
| Topology | Buck |
| Input Voltage MIN | 3 V |
| Switching Frequency | 3 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM2734Z |
| Packaging | Reel |
| Input Voltage | 3 V to 20 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.5 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.000688 oz |
For more information, please refer to datasheet
Documents
| LM2734ZSD/NOPB Datasheet |
More Information
The LM2734Z regulator is a monolithic, high-frequency, PWM step-down DCDC converter assembled in a thick 6-pin SOT and a WSON non-pullback package. The device provides all the active functions to provide local DCDC conversion with fast transient response and accurate regulation in the smallest possible PCB area.
