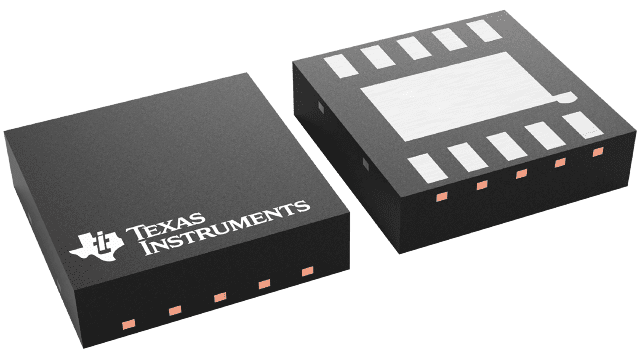

LM2750LD-5.0/NOPB Texas Instruments - Yeehing Electronics
2.7-V to 5.6-VIN low-noise switched-capacitor boost doubler
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.718 |
100 — 249 | 1.419 |
250 — 999 | 1.019 |
1,000 + | 0.61 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-10 |
Output Voltage | 5 V |
Output Current | 120 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 5.6 V |
Topology | Boost |
Input Voltage MIN | 2.7 V |
Switching Frequency | 1700 kHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Series | LM2750 |
Packaging | Reel |
Height | 0.8 mm |
Input Voltage | 2.7 V to 5.6 V |
Length | 3 mm |
Operating Temperature Range | - 40 C to + 85 C |
Product | Voltage Regulators |
Type | Step Up |
Width | 3 mm |
Brand | Texas Instruments |
Shutdown | Shutdown |
Moisture Sensitive | Yes |
Operating Supply Current | 5 mA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 1000 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 2.7 V |
Unit Weight | 0.000698 oz |
For more information, please refer to datasheet
Documents
LM2750LD-5.0/NOPB Datasheet |
More Information
The LM2750 is a regulated switched-capacitor doubler that produces a low-noise output voltage. The 5-V output voltage option (LM2750-5.0) can supply up to 120 mA of output current over a 2.9-V to 5.6-V input range, as well as up to 40 mA of output current when the input voltage is as low as 2.7 V. An adjustable output voltage option with similar output current capabilities is also available (LM2750-ADJ). The LM2750 has been placed in TI's 10-pin WSON, a package with excellent thermal properties that keeps the part from overheating under almost all rated operating conditions.
