Texas Instruments
LM2750SD-5.0/NOPB
LM2750SD-5.0/NOPB
Regular price
$0.61 USD
Regular price
Sale price
$0.61 USD
Unit price
per
Couldn't load pickup availability
LM2750SD-5.0/NOPB Texas Instruments - Yeehing Electronics
2.7-V to 5.6-VIN low-noise switched-capacitor boost doubler
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.718 |
| 100 — 249 | 1.419 |
| 250 — 999 | 1.019 |
| 1,000 + | 0.61 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 1,000 |

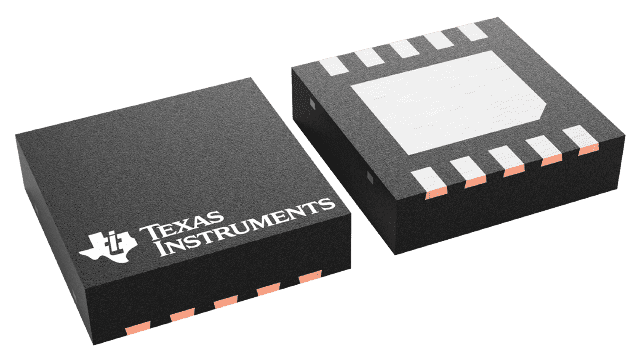

| Package | Pins | WSON (DSC) | 10 |
For more information, please refer to datasheet
Documents
| LM2750SD-5.0/NOPB Datasheet |
More Information
The LM2750 is a regulated switched-capacitor doubler that produces a low-noise output voltage. The 5-V output voltage option (LM2750-5.0) can supply up to 120 mA of output current over a 2.9-V to 5.6-V input range, as well as up to 40 mA of output current when the input voltage is as low as 2.7 V. An adjustable output voltage option with similar output current capabilities is also available (LM2750-ADJ). The LM2750 has been placed in TI's 10-pin WSON, a package with excellent thermal properties that keeps the part from overheating under almost all rated operating conditions.
