LM2750SDX-5.0/NOPB Texas Instruments - Yeehing Electronics

2.7-V to 5.6-VIN low-noise switched-capacitor boost doubler

Pricing (USD)

Quantity	Unit Price
1 — 99	1.431
100 — 249	1.182
250 — 999	0.849
1,000 +	0.45

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM2750SDX-5.0/NOPB Datasheet

More Information

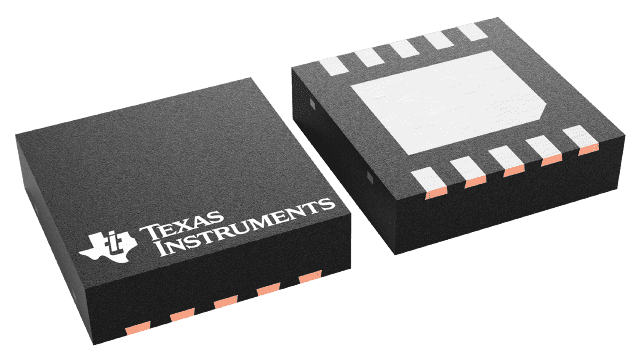

The LM2750 is a regulated switched-capacitor doubler that produces a low-noise output voltage. The 5-V output voltage option (LM2750-5.0) can supply up to 120 mA of output current over a 2.9-V to 5.6-V input range, as well as up to 40 mA of output current when the input voltage is as low as 2.7 V. An adjustable output voltage option with similar output current capabilities is also available (LM2750-ADJ). The LM2750 has been placed in TI's 10-pin WSON, a package with excellent thermal properties that keeps the part from overheating under almost all rated operating conditions.
