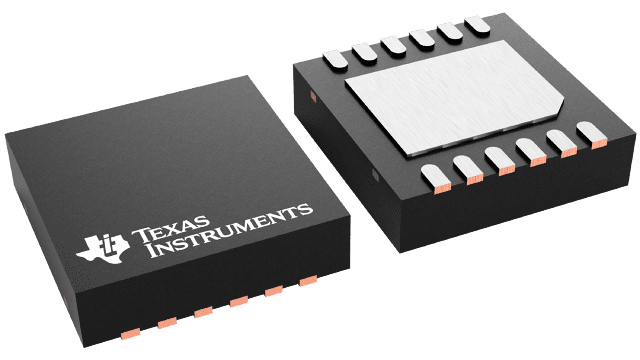

LM2759SD/NOPB Texas Instruments - Yeehing Electronics
1A switched capacitor flash LED driver with I2C compatible interface
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.357 |
100 — 249 | 1.121 |
250 — 999 | 0.805 |
1,000 + | 0.35 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Number of Channels | 1 Channel |
Output Current | 1 A |
Input Voltage | 2.7 V to 5.5 V |
Operating Frequency | 0.7 MHz to 1.3 MHz |
Supply Current - Max | 7 mA |
Minimum Operating Temperature | - 30 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WSON-12 |
Series | LM2759 |
Packaging | Reel |
Features | I2C Control |
Height | 0.8 mm |
Length | 3 mm |
Operating Temperature Range | - 30 C to + 85 C |
Output Type | Constant Current |
Type | Capacitive |
Width | 3 mm |
Brand | Texas Instruments |
Topology | Boost |
Development Kit | LM2759SDEV |
Moisture Sensitive | Yes |
Operating Supply Voltage | 2.7 V to 5.5 V |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 1000 |
Subcategory | Driver ICs |
Unit Weight | 0.000656 oz |
For more information, please refer to datasheet
Documents
LM2759SD/NOPB Datasheet |
More Information
LM2759 is an integrated low-noise, high-current switched capacitor DC/DC converter with a regulated current source. The device requires only four small ceramic capacitors making the total solution area less than 22 mm2 and the height less than 1 mm. The LM2759 is capable of driving loads up to 1A from a single-cell Li-Ion battery. Maximum efficiency is achieved over the input voltage range by actively selecting the proper gain based on the LED forward voltage and current requirements.
