Texas Instruments

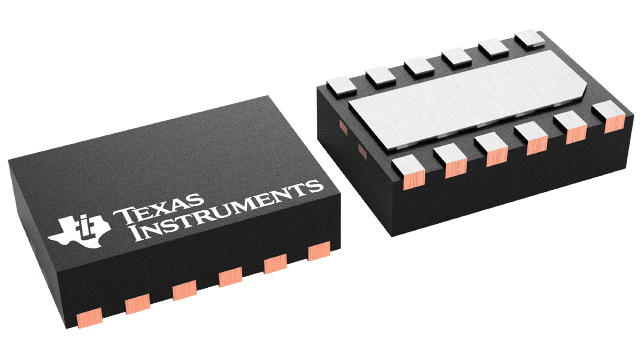

LM27762DSSR
LM27762DSSR
Regular price
$0.46 USD
Regular price
Sale price
$0.46 USD
Unit price
per
Couldn't load pickup availability
LM27762DSSR Texas Instruments - Yeehing Electronics
Low-Noise Positive- and Negative-Output Charge Pump With Integrated LDO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.478 |
| 100 — 249 | 1.221 |
| 250 — 999 | 0.877 |
| 1,000 + | 0.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-12 |
| Output Voltage | Adj |
| Output Current | 250 mA |
| Number of Outputs | 1 Output |
| Quiescent Current | 390 uA |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Dropout Voltage | 30 mV |
| Series | LM27762 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | LDO Regulators |
| Type | Low Noise |
| Brand | Texas Instruments |
| Output Voltage Range | +/- 1.5 V to +/- 5 V |
| PSRR / Ripple Rejection - Typ | 50 dB |
| Line Regulation | 1.5 mV/V, 1.9 mV/V |
| Load Regulation | 11 uV/mA, 34 uV/mA |
| Moisture Sensitive | Yes |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000631 oz |
For more information, please refer to datasheet
Documents
| LM27762DSSR Datasheet |
More Information
The LM27762 delivers very low-noise positive and negative outputs that are adjustable between ±1.5 V and ±5 V. Input-voltage range is from 2.7 V to 5.5 V, and output current goes up to ±250 mA. With an operating current of only 390 µA and 0.5-µA typical shutdown current, the LM27762 provides ideal performance for power amplifier and DAC bias and other high-current, low-noise negative voltage needs. The device provides a small solution size with few external components.
