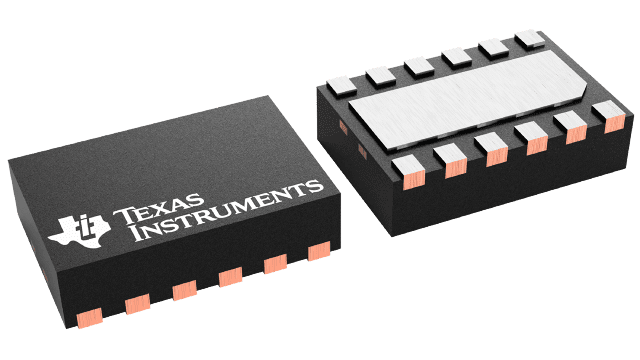

LM27762DSST Texas Instruments - Yeehing Electronics

Low-Noise Positive- and Negative-Output Charge Pump With Integrated LDO

Pricing (USD)

Quantity	Unit Price
1 — 99	1.774
100 — 249	1.465
250 — 999	1.053
1,000 +	0.55

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM27762DSST Datasheet

More Information

The LM27762 delivers very low-noise positive and negative outputs that are adjustable between ±1.5 V and ±5 V. Input-voltage range is from 2.7 V to 5.5 V, and output current goes up to ±250 mA. With an operating current of only 390 µA and 0.5-µA typical shutdown current, the LM27762 provides ideal performance for power amplifier and DAC bias and other high-current, low-noise negative voltage needs. The device provides a small solution size with few external components.
