Texas Instruments

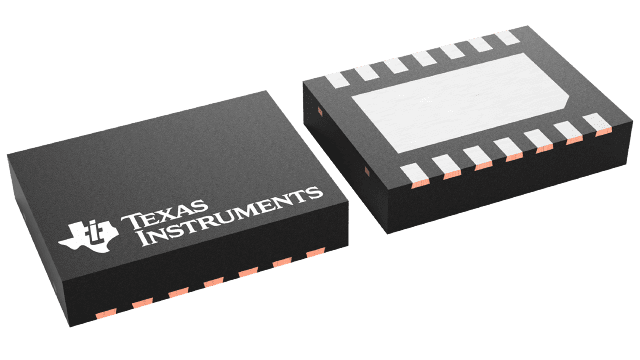

LM27951SD/NOPB
LM27951SD/NOPB
Regular price
$0.34 USD
Regular price
Sale price
$0.34 USD
Unit price
per
Couldn't load pickup availability
LM27951SD/NOPB Texas Instruments - Yeehing Electronics
White LED adaptive 1.5X/1X switched capacitor current driver with 2.8V-5.5V input voltage range
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.389 |
| 100 — 249 | 1.147 |
| 250 — 999 | 0.824 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 4 Channel |
| Output Current | 120 mA |
| Input Voltage | 2.8 V to 5.5 V |
| Operating Frequency | 750 kHz |
| Supply Current - Max | 1.9 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LLP-14 |
| Series | LM27951 |
| Packaging | Reel |
| Features | Direct PWM Dimming |
| Height | 0.8 mm |
| Length | 4 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | Constant Current |
| Type | Capacitive |
| Width | 3 mm |
| Brand | Texas Instruments |
| Topology | Buck |
| Operating Supply Voltage | 2.8 V to 5.5 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 1000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000910 oz |
For more information, please refer to datasheet
Documents
| LM27951SD/NOPB Datasheet |
More Information
The LM27951 is a switched capacitor white-LED driver capable of driving up to four LEDs with 30 mA through each LED. Its four tightly regulated current sources ensure excellent LED current and brightness matching. LED drive current is programmed by an external sense resistor. The LM27951 operates over an input voltage range from 2.8 V to 5.5 V and requires only four low-cost ceramic capacitors.
