Texas Instruments
LM2876TF/NOPB
LM2876TF/NOPB
Regular price
$1.75 USD
Regular price
Sale price
$1.75 USD
Unit price
per
Couldn't load pickup availability

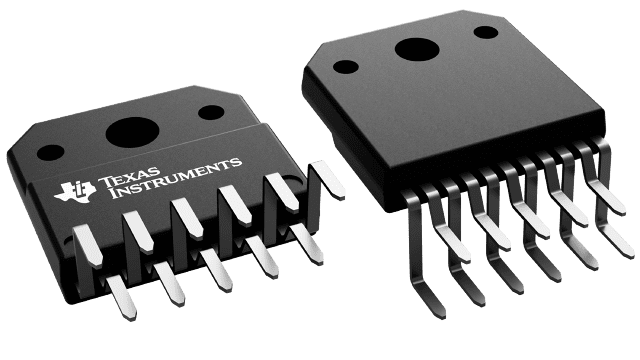

LM2876TF/NOPB Texas Instruments - Yeehing Electronics
High-Performance 40 Watt Audio Power Amplifier w/Mute
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.613 |
| 100 — 249 | 3.761 |
| 250 — 999 | 2.956 |
| 1,000 + | 1.75 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | E |
| Series | LM2876 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 40 W |
| Mounting Style | Through Hole |
| Type | Audio Power Amplifier |
| Package / Case | TO-220 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.06 % |
| Supply Voltage - Max | 60 V |
| Supply Voltage - Min | 20 V |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Description/Function | Speaker |
| Height | 10.64 mm |
| Input Type | Single |
| Length | 20.02 mm |
| Output Type | 1-Channel Mono |
| Supply Type | Single, Dual |
| Width | 4.5 mm |
| Brand | Texas Instruments |
| CMRR - Common Mode Rejection Ratio | 75 dB |
| Dual Supply Voltage | +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V |
| GBP - Gain Bandwidth Product | 8 MHz |
| Ib - Input Bias Current | 1 uA |
| Maximum Dual Supply Voltage | +/- 30 V |
| Minimum Dual Supply Voltage | +/- 10 V |
| Operating Supply Current | 24 mA |
| Operating Supply Voltage | 18 V |
| Output Signal Type | Single |
| Pd - Power Dissipation | 125 W |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 125 dB |
| Factory Pack Quantity | 20 |
| Subcategory | Audio ICs |
| Tradename | Overture |
| Vos - Input Offset Voltage | 10 mV |
| Unit Weight | 0.081130 oz |
For more information, please refer to datasheet
Documents
| LM2876TF/NOPB Datasheet |
More Information
The LM2876 is a high-performance audio power amplifier capable of delivering 40W of continuous average power to an 8Ω load with 0.1% THD+N from 20Hz–20kHz.
