LM2904ITPX/NOPB Texas Instruments - Yeehing Electronics

Dual, 26-V, 1-MHz op amp

Pricing (USD)

Quantity	Unit Price
1 — 99	0.808
100 — 249	0.621
250 — 999	0.457
1,000 +	0.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	SMD/SMT

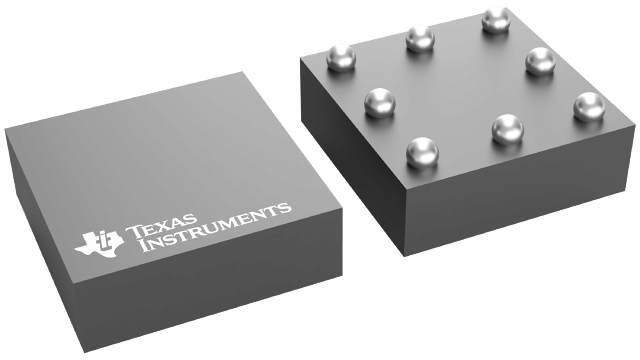

Package / Case	DSBGA-8
Supply Voltage - Max	32 V
Output Current per Channel	30 mA
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	1 MHz
SR - Slew Rate	0.1 V/us
CMRR - Common Mode Rejection Ratio	50 dB to 70 dB
Ib - Input Bias Current	250 nA
Vos - Input Offset Voltage	7 mV
Supply Voltage - Min	3 V
Operating Supply Current	250 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Shutdown	No Shutdown
Series	LM2904-N
Packaging	Reel
Features	Small Size
Input Type	Rail-to-Rail
Product	Operational Amplifiers
Supply Type	Single, Dual
Brand	Texas Instruments
Minimum Dual Supply Voltage	+/- 1.5 V
Operating Supply Voltage	3 V to 32 V, +/- 1.5 V to +/- 16 V
Product Type	Op Amps - Operational Amplifiers
Factory Pack Quantity	3000
Subcategory	Amplifier ICs
Unit Weight	0.000081 oz

For more information, please refer to datasheet

Documents

LM2904ITPX/NOPB Datasheet

More Information

The LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
