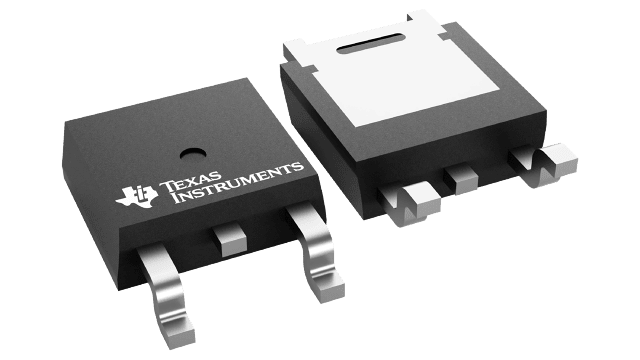

LM2936QDT-5.0/NOPB Texas Instruments - Yeehing Electronics
Automotive 50-mA, off-battery (60-V), low-dropout voltage regulator with reverse voltage protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.446 |
| 100 — 249 | 2.02 |
| 250 — 999 | 1.451 |
| 1,000 + | 0.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-252-3 |
| Output Voltage | 5 V |
| Output Current | 50 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 40 V |
| Input Voltage MIN | 5.5 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 200 mV |
| Series | LM2936Q-Q1 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Regulators |
| Type | Ultra Low Quiescent Current |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 400 mV |
| PSRR / Ripple Rejection - Typ | - 60 dB |
| Line Regulation | 10 mV |
| Load Regulation | 10 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 15 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 75 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.139332 oz |
For more information, please refer to datasheet
Documents
| LM2936QDT-5.0/NOPB Datasheet |
More Information
The LM2936Q ultralow quiescent-current regulator features low dropout voltage and low current in the standby mode. With less than 15-μA quiescent current at a 100-μA load, the LM2936Q is ideally suited for automotive and other battery-operated systems. The LM2936Q retains all of the features that are common to low-dropout regulators including a low dropout PNP pass device, short-circuit protection, reverse battery protection, and thermal shutdown. The LM2936Q has a 40-V maximum operating voltage limit, a −40°C to +125°C operating temperature range, and ±3% output voltage tolerance over the entire output current, input voltage, and temperature range. The LM2936Q is available in
