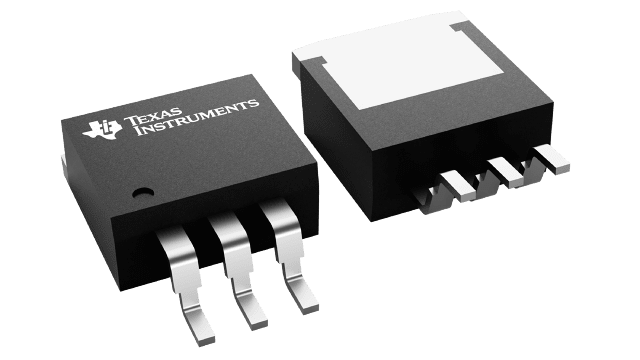

LM2937ES-10/NOPB Texas Instruments - Yeehing Electronics

500-mA, 26-V, high-PSRR, low-dropout voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.814
100 — 249	1.499
250 — 999	1.076
1,000 +	0.57

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-263-3
Output Voltage	10 V
Output Current	500 mA
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	10 mA
Input Voltage MAX	26 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	500 mV
Series	LM2937
Packaging	Tube
Operating Temperature Range	- 40 C to + 125 C
Product	LDO Regulators
Type	Positive Voltage
Brand	Texas Instruments
Dropout Voltage - Max	0.25 V at 50 mA, 1 V at 500 mA
Voltage Regulation Accuracy	+/- 5 %
Ib - Input Bias Current	2 mA
Line Regulation	30 mV
Load Regulation	10 mV
Moisture Sensitive	Yes
Operating Supply Current	2 mA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	45
Subcategory	PMIC - Power Management ICs
Unit Weight	0.068654 oz

For more information, please refer to datasheet

Documents

LM2937ES-10/NOPB Datasheet

More Information

The LM2937 is a positive voltage regulator capable of supplying up to 500 mA of load current. The use of a PNP power transistor provides a low dropout voltage characteristic. With a load current of 500 mA the minimum input to output voltage differential required for the output to remain in regulation is typically 0.5 V (1-V ensured maximum over the full operating temperature range). Special circuitry has been incorporated to minimize the quiescent current to typically only 10 mA with a full 500-mA load current when the input to output voltage differential is greater than 3 V.
