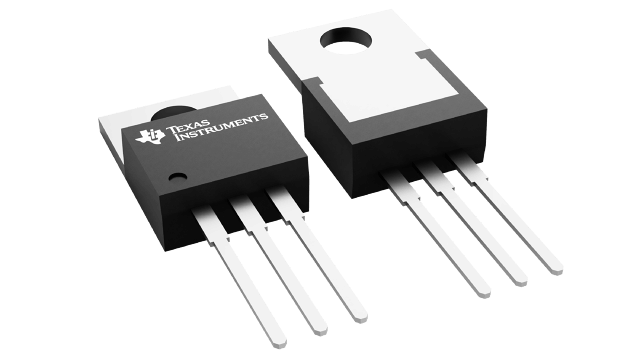

LM2940CT-5.0/NOPB Texas Instruments - Yeehing Electronics
1-A, 26-V, high-PSRR, low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.407 |
| 100 — 249 | 1.162 |
| 250 — 999 | 0.835 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-3 |
| Output Voltage | 5 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 15 mA |
| Input Voltage MAX | 26 V |
| Input Voltage MIN | 6.25 V |
| Output Type | Fixed |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 500 mV |
| Series | LM2940C |
| Packaging | Tube |
| Operating Temperature Range | 0 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.8 V at 1A, 0.15 V at 100 mA |
| Ib - Input Bias Current | 10 mA |
| Line Regulation | 50 mV |
| Load Regulation | 50 mV |
| Operating Supply Current | 10 mA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 45 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.211644 oz |
For more information, please refer to datasheet
Documents
| LM2940CT-5.0/NOPB Datasheet |
More Information
The LM2940-N and LM2940C positive voltage regulators feature the ability to source 1 A of output current with a dropout voltage of typically 0.5 V and a maximum of 1 V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3 V).
