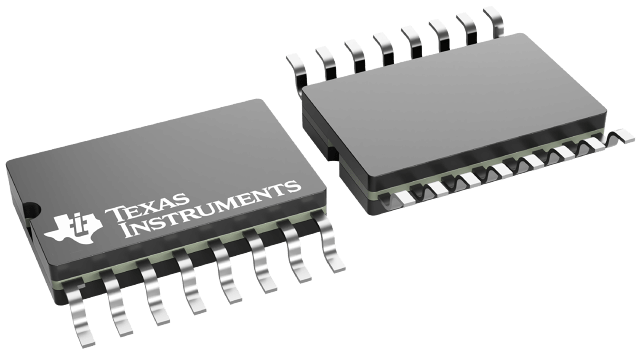

LM2940GW5.0/883 Texas Instruments - Yeehing Electronics

Military Grade 1A 5V Output Linear Regulator / LDO

Pricing (USD)

Quantity	Unit Price
1 — 99	148.185
100 — 249	143.728
250 — 999	119.662
1,000 +	77.99

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM2940GW5.0/883 Datasheet

More Information

The LM2940 positive voltage regulator features the ability to source 1A of output current with a dropout voltage of typically 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3V).
