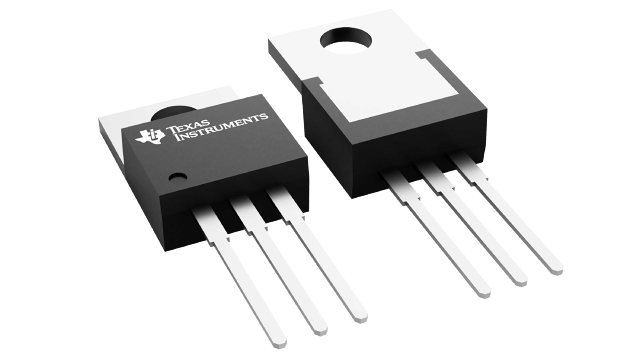

LM2940T-8.0/NOPB Texas Instruments - Yeehing Electronics

1-A, 26-V, high-PSRR, low-dropout voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.431
100 — 249	1.182
250 — 999	0.849
1,000 +	0.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-220-3
Output Voltage	8 V
Output Current	1 A
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	15 mA
Input Voltage MAX	26 V
Input Voltage MIN	9.4 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	500 mV
Series	LM2940-N
Packaging	Tube
Operating Temperature Range	- 40 C to + 125 C
Product	LDO Regulators
Type	Positive Voltage
Brand	Texas Instruments
Dropout Voltage - Max	0.8 V at 1 A, 0.15 V at 100 mA
PSRR / Ripple Rejection - Typ	66 dB
Ib - Input Bias Current	10 mA
Line Regulation	80 mV
Load Regulation	80 mV
Operating Supply Current	10 mA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	45
Subcategory	PMIC - Power Management ICs
Unit Weight	0.211644 oz

For more information, please refer to datasheet

Documents

LM2940T-8.0/NOPB Datasheet

More Information

The LM2940-N and LM2940C positive voltage regulators feature the ability to source 1 A of output current with a dropout voltage of typically 0.5 V and a maximum of 1 V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3 V).
