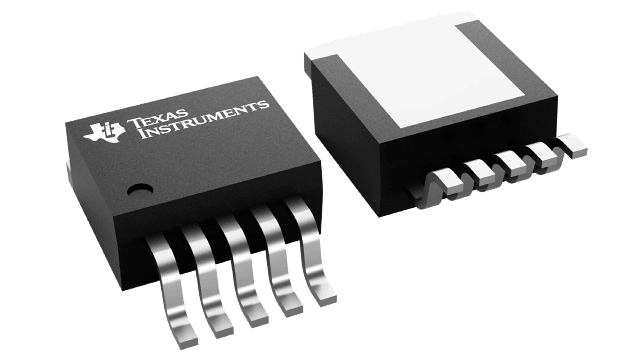

LM2941CSX/NOPB Texas Instruments - Yeehing Electronics

1-A, 26-V, high-PSRR, adjustable low-dropout voltage regulator with enable from 0°C to 125°C

Pricing (USD)

Quantity	Unit Price
1 — 99	1.774
100 — 249	1.465
250 — 999	1.053
1,000 +	0.55

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-263-5
Output Voltage	Adj
Output Current	1 A
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	15 mA
Input Voltage MAX	26 V
Input Voltage MIN	- 15 V
Output Type	Adjustable
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	500 mV
Series	LM2941C
Packaging	Reel
Operating Temperature Range	0 C to + 125 C
Brand	Texas Instruments
Dropout Voltage - Max	0.8 V
Output Voltage Range	5 V to 20 V
Ib - Input Bias Current	10 mA
Line Regulation	10 mV/V
Load Regulation	10 mV/V
Moisture Sensitive	Yes
Operating Supply Current	10 mA
Product Type	LDO Voltage Regulators
Reference Voltage	1.313 V
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.056128 oz

For more information, please refer to datasheet

Documents

LM2941CSX/NOPB Datasheet

More Information

The LM2941 positive voltage regulator features the ability to source 1 A of output current with a typical dropout voltage of 0.5 V and a maximum of 1 V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3 V).
