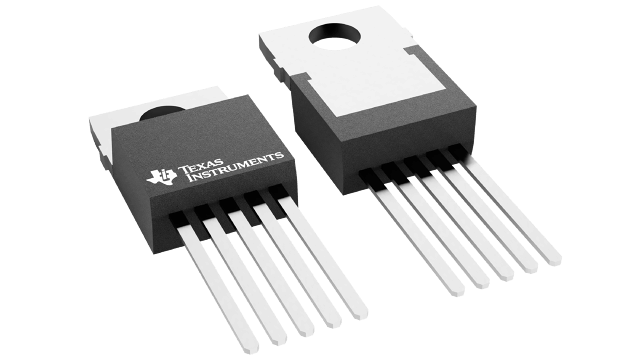

LM2941CT/LF04 Texas Instruments - Yeehing Electronics

1-A, 26-V, high-PSRR, adjustable low-dropout voltage regulator with enable from 0°C to 125°C

Pricing (USD)

Quantity	Unit Price
1 — 99	1.324
100 — 249	1.093
250 — 999	0.785
1,000 +	0.41

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	N
Mounting Style	Through Hole
Package / Case	TO-220-5
Output Current	1.2 A
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	500 mV
Series	LM2941C
Packaging	Tube
Operating Temperature Range	0 C to + 125 C
Brand	Texas Instruments
Operating Supply Current	10 mA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	45
Subcategory	PMIC - Power Management ICs
Unit Weight	0.105822 oz

For more information, please refer to datasheet

Documents

LM2941CT/LF04 Datasheet

More Information

The LM2941 positive voltage regulator features the ability to source 1 A of output current with a typical dropout voltage of 0.5 V and a maximum of 1 V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3 V).
