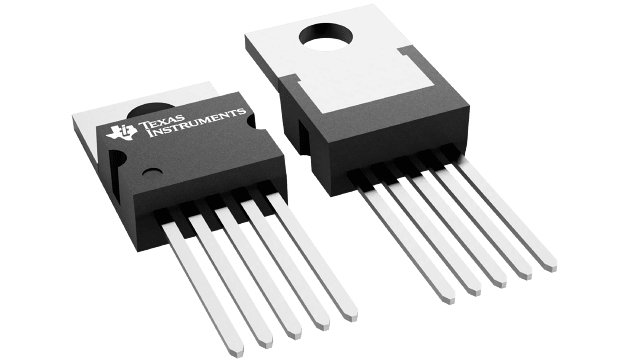

LM2941CT/NOPB Texas Instruments - Yeehing Electronics
1-A, 26-V, high-PSRR, adjustable low-dropout voltage regulator with enable from 0°C to 125°C
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.324 |
100 — 249 | 1.093 |
250 — 999 | 0.785 |
1,000 + | 0.41 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-220-5 |
Output Voltage | Adj |
Output Current | 1 A |
Number of Outputs | 1 Output |
Polarity | Positive |
Quiescent Current | 15 mA |
Input Voltage MAX | 26 V |
Input Voltage MIN | - 15 V |
Output Type | Adjustable |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 500 mV |
Series | LM2941C |
Packaging | Tube |
Operating Temperature Range | 0 C to + 125 C |
Brand | Texas Instruments |
Dropout Voltage - Max | 0.8 V |
Output Voltage Range | 5 V to 20 V |
Ib - Input Bias Current | 10 mA |
Line Regulation | 10 mV/V |
Load Regulation | 10 mV/V |
Operating Supply Current | 10 mA |
Product Type | LDO Voltage Regulators |
Reference Voltage | 1.313 V |
Factory Pack Quantity | 45 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.105822 oz |
For more information, please refer to datasheet
Documents
LM2941CT/NOPB Datasheet |
More Information
The LM2941 positive voltage regulator features the ability to source 1 A of output current with a typical dropout voltage of 0.5 V and a maximum of 1 V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3 V).
