Texas Instruments

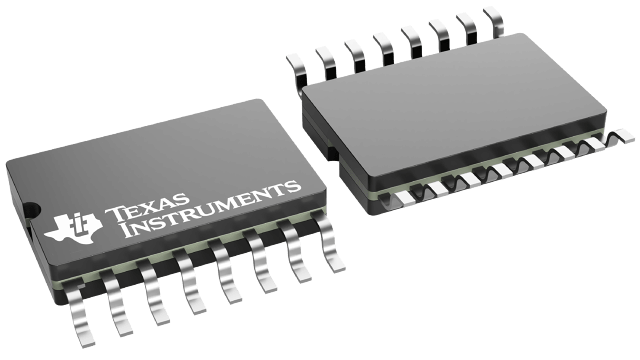

LM2941GW/883
LM2941GW/883
Regular price
$51.03 USD
Regular price
Sale price
$51.03 USD
Unit price
per
Couldn't load pickup availability
LM2941GW/883 Texas Instruments - Yeehing Electronics
1A Low Dropout Adjustable Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 96.95 |
| 100 — 249 | 94.035 |
| 250 — 999 | 78.289 |
| 1,000 + | 51.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -55 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 42 |
| Package | Pins | CFP (NAC) | 16 |
For more information, please refer to datasheet
Documents
| LM2941GW/883 Datasheet |
More Information
The LM2941 positive voltage regulator features the ability to source 1A of output current with a typical dropout voltage of 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VI − VO ≤ 3V).
