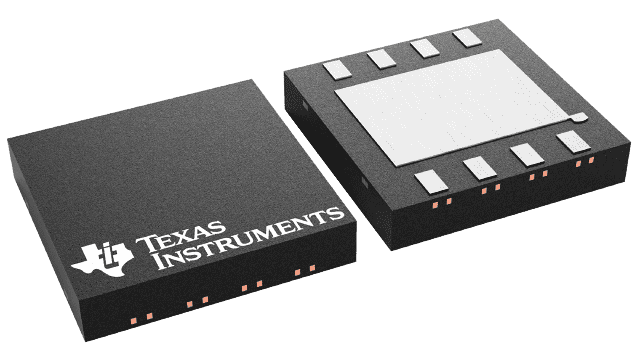

LM2941LD/NOPB Texas Instruments - Yeehing Electronics
1-A, 26-V, high-PSRR, adjustable low-dropout voltage regulator with enable from -40°C to +125°C
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.584 |
| 100 — 249 | 1.308 |
| 250 — 999 | 0.94 |
| 1,000 + | 0.95 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Output Voltage | 5 V to 20 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 15 mA |
| Input Voltage MAX | 26 V |
| Input Voltage MIN | - 15 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 500 mV |
| Series | LM2941 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Adjustable Regulators |
| Type | Positive Voltage Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 0.2 V at 100 mA, 0.8 V at 1 A |
| Ib - Input Bias Current | 10 mA |
| Line Regulation | 10 mV/V |
| Load Regulation | 10 mV/V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 mA |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 1.313 V |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| LM2941LD/NOPB Datasheet |
More Information
The LM2941 positive voltage regulator features the ability to source 1 A of output current with a typical dropout voltage of 0.5 V and a maximum of 1 V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3 V).
