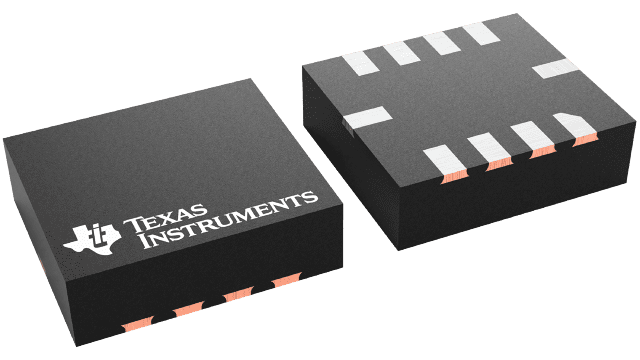

LM3017LE/NOPB Texas Instruments - Yeehing Electronics

High Efficiency Low-Side Controller with True Shutdown

Pricing (USD)

Quantity	Unit Price
1 — 99	1.662
100 — 249	1.373
250 — 999	0.986
1,000 +	0.52

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Boost
Number of Outputs	1 Output
Switching Frequency	600 kHz
Input Voltage	18 V
Output Current	1 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	WQFN-10
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Series	LM3017
Type	NFET Controller
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	1 uA
Product Type	Switching Controllers
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

LM3017LE/NOPB Datasheet

More Information

The LM3017 device is a versatile low-side NFET controller incorporating true shutdown and input side current limiting. The LM3017 is designed for simple implementation of boost conversions in Thunderbolt™ Technology. The LM3017 can also be configured for flyback or SEPIC designs. The input voltage range of 5 V to 18 V accommodates a two- or three-cell lithium ion battery or a 12-V rail. The enable pin accepts a single input to drive three different modes of operation: boost, pass-through, or shutdown mode. The LM3017 draws very low current in shutdown mode, typically 40 nA from the input supply.
